Vantage Vue Sensor Suite with WeatherLink Live Console

€769.00 (tax incl.) (€640.83 VAT excl.)

Delivery in 1 to 5 days in Europa

The Vantage Vue Weather Station + WeatherLink Live Console Pack gives you a connected weather station at an unbeatable price! Pack without LCD console

Reference

6110EU

Available (5 Items)

Description
Downloads

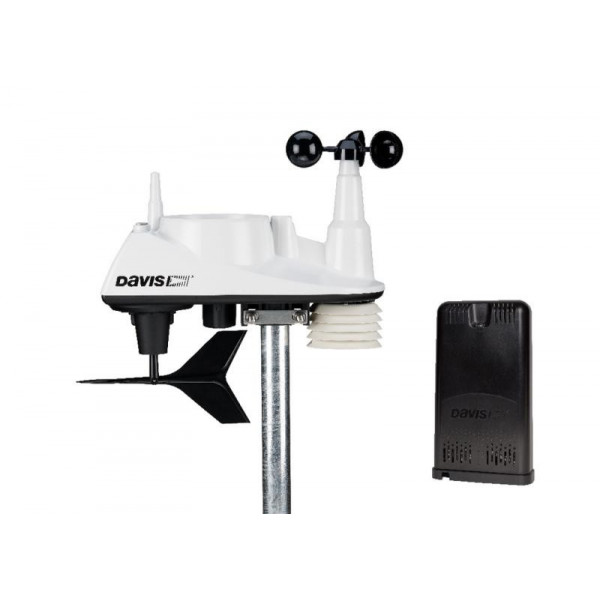

This package includes a Vantage Vue sensor suite from Davis Instruments and a WeatherLink Live connected console.

The Vantage Vue 6357OV Sensor Suite (ISS) is a complete suite for measuring all major weather parameters (temperature, humidity, wind speed and direction, and rainfall). It is self-sufficient in energy thanks to a solar panel and a backup Lithium 3V CR123 battery (not supplied) and communicates data by radio wave to the console. The sensor suite can be located up to 300m from the console in view, generally up to 100-150m depending on the presence of obstacles. The ISS is very robust and can be mounted on a mast (tube). A dual sensor for measuring outside temperature and humidity is placed in a solar radiation shelter. The rain gauge is equipped with a tipping bucket system to measure precipitation. The wind vane can not be disconnected from the ISS.

The WeatherLink Live console allows you to connect your weather data to the internet and view your data from anywhere with the weatherlink.com cloud and the WeatherLink mobile app available on Android and iOS. More info: WeatherLink Live Console

The Davis Vantage Vue + WeatherLink Live weather station comes with:

A WeatherLink Live connected console, 6100EU.
6357OV outdoor sensor suite (ISS).
A mounting kit.
An instruction manual.

And can measure:

Indoor temperature - Resolution 0.1°C.
Outdoor temperature - Resolution 0.1°C.
Indoor humidity - Resolution: 1%.
Outdoor humidity - Resolution: 1%.
Atmospheric pressure - Resolution: 0.1 hPa.
Heat index - Resolution 1°C.
Dew point - Resolution 1°C.
Precipitation - Resolution 0.25 mm.
Feeling temperature - Resolution 1°C.
Wind speed from 3 to 241 Km/h - Resolution 1 Km/h.
Wind direction - Resolution 1°.

A second Vantage Vue weather station package complete with LCD console + WeatherLink Live console is available, ref 6120EU.

Manual 6100EU (EN)

Download (1.08MB)

Manual ISS Vantage Vue (EN)

Download (1.4MB)

Data sheet

Miscellaneous

Size: 45.7 x 18.4 x 38.4 cm
Weight: 3.0 kg
Warranty: 2 ans
Radio frequency: 868.0 - 868.6 MHz FHSS, inférieur à 8mW
Wireless range: 300m à vue, 60 à 120m avec des obstacles

Wind

Units of measurement: mph, km/h, m/s, Nœud
Resolution: 1 mph, 1 km/h, 0.5 m/s, ou 1 Nœud
Accuracy: ±3 km/h
Measuring range: 3 à 290 km/h
Measurement frequency: 2.5 à 3 secondes
Measurement principle: Godets à vent, capteur à effet Hall

Wind direction

Resolution: 16 points (22,5°) sur la rose des vents, 1° à affichage numérique
Accuracy: ±3°
Measuring range: 0 à 360°
Measurement frequency: 2.5 à 3 secondes
Measurement principle: Girouette avec potentiomètre

Atmospheric pressure

Units of measurement: in Hg, mm Hg, hPa/mb
Resolution: 0.01in Hg, 0.1 mm Hg, 0.1 hPa/mb
Accuracy: ±1.0 hPa
Measuring range: 540 à 1100 hPa
Measurement frequency: 1 minute

Outside temperature

Units of measurement: °C ou °F
Resolution: 0.1
Accuracy: ±0.5°C
Measuring range: -40°C à 65°C
Measurement frequency: 10 à 12 secondes
Measurement principle: PN junction silicon diode

Windchill

Resolution: 1
Accuracy: ±1
Measurement frequency: 10 à 12 secondes
Measurement principle: Calcul, formule de Osczevski (1995)

Inside temperature

Units of measurement: °C ou °F
Resolution: 0.1
Accuracy: ±0.5°C
Measuring range: 0 à 60°C
Measurement frequency: 1 minute

Integrated Sensor Suite (ISS)

Composition: plastiques ABS et ASA résistants aux UV
Measure: Wind speed ; Wind direction ; Rainfall ; Windchill ; Wind gusts ; Temperature ; Humidity
Power supply: panneau solaire, accumulateur 10F, pile de secours
Power supply autonomy: 8 mois sans ensoleillement, plus de 2 ans en fonction de l'ensoleillement
Operating temperature: -40 à 65°C
Current consumption: 0.20 mA (moyenne), 30 mA (pic) à 3.3 VDC
Backup power supply: pile Lithium 3V CR123 (non fournie)

Outdoor humidity

Units of measurement: % HR
Resolution: 1%
Accuracy: ±2%
Measuring range: 1 à 100% RH
Measurement frequency: 50 secondes à 1 minute
Measurement principle: Condensateur à film
Drift: inférieur à 0.25% par an

Rainfall

Units of measurement: mm ou pouces
Resolution: 0.2 mm ou 0.01in
Accuracy: Pour les intensités de pluie jusqu'à 250 mm/h : ±4% du total ou ±0.2 mm au plus
Measurement frequency: 20 à 24 secondes
Measurement principle: Auget basculant
Rain receiving surface: 116 cm2

Rainfall rate

Units of measurement: mm/h ou in/h
Resolution: 0.1 mm ou 0.01 in/h
Accuracy: ±5% pour les intensités inférieures à 250 mm/h
Measuring range: 0 à 762 mm/h
Measurement frequency: 20 à 24 secondes

Indoor humidity

Units of measurement: % HR
Resolution: 1 % HR
Accuracy: ±2%
Measuring range: 1 à 100% HR
Measurement frequency: 1 minute

Dew point

Units of measurement: °C ou °F
Resolution: 1
Accuracy: ±1.5°C
Measuring range: -76° à 54°C
Measurement frequency: 10 à 12 secondes
Measurement principle: L'équation de l'OMM à l'égard de la saturation de l'air humide sur l'eau

WeatherLink Live Console

Composition: plastique ABS résistant aux UV
Measure: Atmospheric pressure ; Temperature ; Humidity
Power supply: Adaptateur secteur AC, 5 VDC, 300 mA, réglementé
Power supply autonomy: 9 mois (approximativement)
Operating temperature: 0 à 60°C
Current consumption: 100 mA, pic à 700 mA
Backup power supply: 4 piles AA (non incluses)
Radio frequency: 868.0 - 868.6 MHz FHSS
Wireless range: jusqu'à 300 m, 60 à 120 mètres à travers les murs et obstacles
WIFI band: 2,4 GHz 802.11b/g/n
