Long distance radio repeater with solar power for wireless Vantage Pro 2
  • Long distance radio repeater with solar power for wireless Vantage Pro 2
  • Long distance radio repeater with solar power for wireless Vantage Pro 2
  • Long distance radio repeater with solar power for wireless Vantage Pro 2

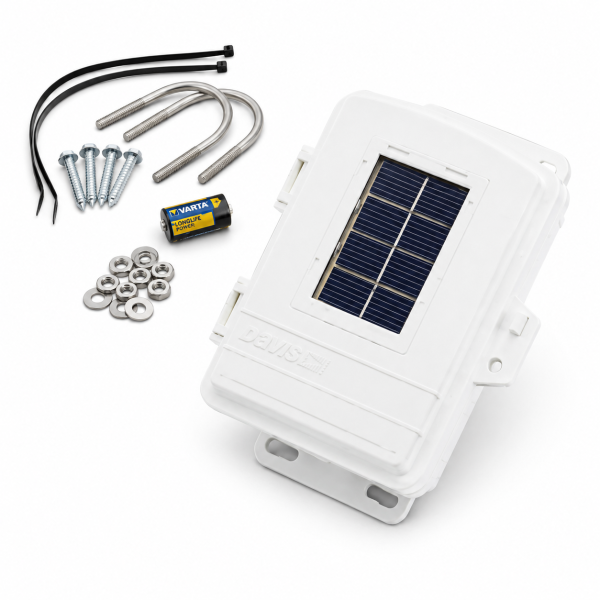

Long distance radio repeater with solar power for wireless Vantage Pro 2

€489.00 (tax incl.) (€407.50 VAT excl.)

Long distance radio repeater with solar power for Vantage pro 2 wireless. This repeater combined with a receiving and a transmitting antenna allows you to increase the range of your sensors by several hundred meters or up to 3 km.

Reference
7654OV
Antennas
  • Without antennas
  • Yagi + Ommi
  • Yagi + Yagi
  • Omni + Omni
Product available with different options

Based on 1 review

Show reviews

The long distance repeater allows you to transmit the radio signal of up to 8 stations* over several kilometres or to solve reception problems in difficult areas. You can use one or more repeaters to form a chain of transmitters, which greatly increases the transmission distance.

The 7654OV radio repeater is compatible with:

  • Vantage Pro 2 stations,
  • Vantage Vue station.
  • 6345OV auxiliary ground station
  • 7627OV and 7626EU radio repeaters

The 7654OV repeater requires two antennas to operate: one antenna for receiving and one antenna for transmitting. You must choose the antennas according to the distance to be covered.

Antennas for the Davis Instruments 7654OV Long Distance Repeater.

  • Omnidirectional antenna: Transmit or receive in all directions
  • Yagi Antenna - Transmit or receive on a single reception

Maximum range at sight depending on configuration:

  • Yagi + Yagi antennas: 3000 metres
  • Yagi + Omni antennas: 1500 metres
  • Omni + Omni antennas: 750 metres

Technical sheet 7654 (EN)

Download (38.06KB)

Manual 7654 (EN)

Download (880.96KB)
Reviews about this product
Logo Société des Avis Garantis Show attestation

Reviews subject to control

0
1★
0
2★
0
3★
0
4★
1
5★
10/10


Based on 1 review

  • 5

    Instructions only in English, quality material (Translated review)



Miscellaneous
Composition
Plastique résistant aux UV
Power supply
panneau solaire, accumulateur 50F, pile de secours
Size
159 mm x 57 mm x 200 mm
Weight
0.54 kg
Wiring
TNC Femelle
Backup power supply
pile Lithium 3V CR123 (non fournie)
Radio frequency
868.0 - 868.6 MHz FHSS
Yagi antenna
Composition
Aluminium, PCB, thermoplastic
Property
Yagi 6 éléments
Size
190x580x60 mm
Weight
410 g
Radio frequency
824-960 MHz
Gain
11.5 dBi
Impedance
50 ohms
Maximum power
10W
Omnidirectional Antenna
Composition
Aluminium
Property
3/4λ Coax, J-Pole
Weight
485 g
Radio frequency
824-894 MHz
Height
360 mm
Gain
4.15dBi (2dBd)
Impedance
50 ohms
Maximum power
10W

Specific references

upc
011698008292
