Modbus TCP/IP and RTU gateway for Vantage Pro2

The Modbus gateway for Vantage Pro 2 weather stations allows you to easily connect a PLC (Programmable Logic Controller), RTU (Remote Telemetry Unit), or SCADA system to a Davis Instruments Vantage Pro2 weather station.

Using the MODBUS protocol, your PLC can monitor weather parameters and perform automation actions based on wind speed, wind direction, temperature, and many other variables.

In addition, the interface allows the configuration of two configurable alarm relays.

Compatible weather stations:

The KTA-282 Modbus gateway is compatible with the following Davis Instruments products associated with a WeatherLink SERIE 6510SER data logger.

• Vantage Pro2 cable 6150CEU
• Vantage pro2 Plus cable 6160CEU
• Vantage Pro2 Wireless 6150EU/
• Vantage Pro2 Plus wireless 6160EU
• 6316EU Wireless Weather Envoy Console (with 6322OV sensor suite)
• 6316CEU Cabled Weather Envoy Console (with 6322C sensor suite)

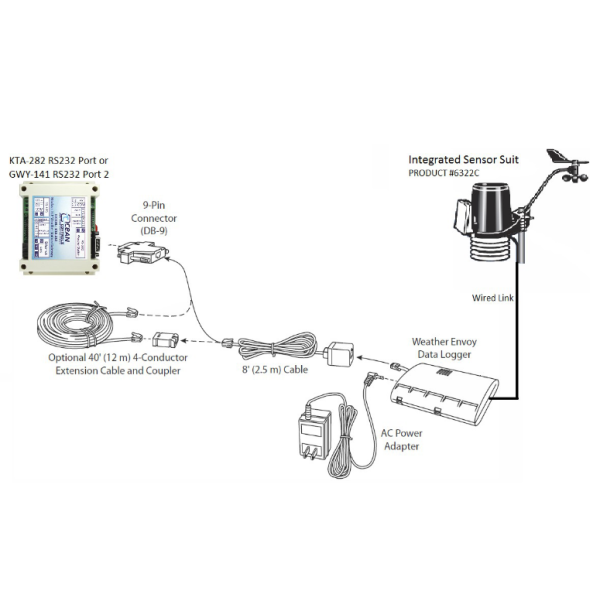

The interface connects to the station using the WeatherLink RS-232 datalogger and appears on the Modbus network as a Modbus TCP/IP or RTU slave. This allows your PLC to monitor and take action based on wind speed, wind direction, temperature and many other parameters.

Technical specifications

• Connects to a Modbus TCP/IP network via Ethernet. Can be interrogated by multiple Modbus masters simultaneously.
• Provides a web page where TCP/IP settings can be easily configured, also displays current settings, weather data, and communications status.
• Also supports Modbus RTU protocol via RS-485 on two independent serial ports.
• Can write directly to the internal memory of the weather station, allowing direct access to certain configuration parameters (commonly latitude, longitude, altitude, time zone, etc).
• Provides a web page and PC application for easy configuration of TCP and RTU parameters. Also displays current settings, weather data and communications status.
• The unit can be screwed to a panel, or mounted on a DIN rail.
• Dimensions: 11.5 × 9.0 × 4.0 cm
• Standard: CE
