GroWeather sensor suite with 24-hour active ventilation for Vantage Pro 2
€1,319.00
(tax incl.)
(€1,099.17 VAT excl.)
Delivery in 1 to 5 days in Europa

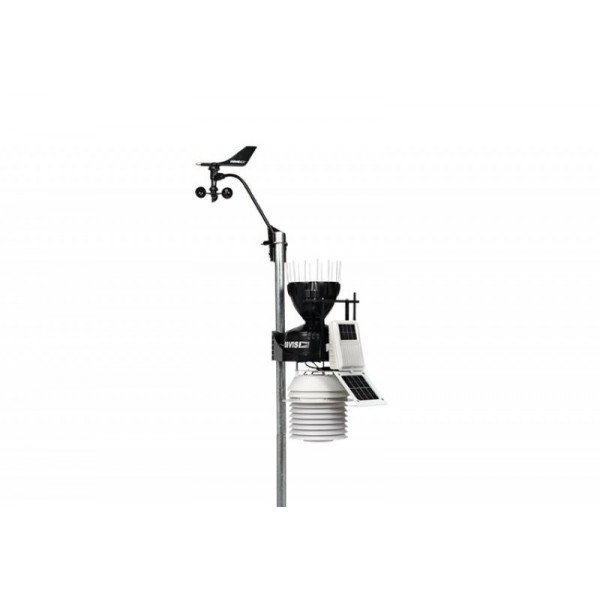

GroWeather Sensor Suite (with pyranometer) for Vantage Pro 2 Wireless Weather Station with 24-hour active ventilation. Includes all of the outdoor sensors for the Vantage Pro 2 6153EU weather station plus the pyranometer and its built-in stand.
GroWeather Wireless Vantage Pro2 Sensor Suite (with pyranometer) with 24-hour active ventilation shelter and solar radiation sensor. This sensor suite is compatible with the Vantage Pro2 EU, UK, FR references. The ISS is very robust and can be mounted on a mast (tube) or wooden pole. A dual sensor for measuring outdoor temperature and humidity is placed in a standard radiation shelter. The aerodynamic rain gauge is equipped with a tilting bucket to measure precipitation and bird spikes. The wind vane anemometer can be detached from the ISS and installed on a roof, for example, thanks to its 12 metre cable.
The 6825OV sensor suite is delivered with:
- An outdoor sensor suite (ISS).
- A pyranometer
- A wind gauge with 12 metres of cable.
- A fixing kit.
- A 24-hour active ventilation system
- An instruction manual
ATTENTION: You are only buying the sensor suite, the console is not sold with the reference 6825OV.
Note on warranty: there is no warranty for the batteries of the active ventilation.
- Miscellaneous
-
- Size
- 378 x 327 x 594 mm
- Weight
- 7.8 kg
- Warranty
- 2 ans
- Radio frequency
- 868.0 - 868.6 MHz FHSS, inférieur à 8mW
- Wireless range
- 300m à vue, 60 à 120m avec des obstacles
- Wind
-
- Units of measurement
- mph, km/h, m/s, Nœud
- Resolution
- 1 mph, 1 km/h, 0.5 m/s, ou 1 Nœud
- Accuracy
- ±3 km/h
- Measuring range
- 3 à 290 km/h
- Measurement frequency
- 2.5 à 3 secondes
- Wiring
- 12m de longueur, max recommandé 165m
- Measurement principle
- Godets à vent, capteur à effet Hall
- Wind direction
-
- Resolution
- 16 points (22,5°) sur la rose des vents, 1° à affichage numérique
- Accuracy
- ±3°
- Measuring range
- 0 à 360°
- Measurement frequency
- 2.5 à 3 secondes
- Measurement principle
- Girouette avec potentiomètre
- Outside temperature
-
- Units of measurement
- °C ou °F
- Resolution
- 0.1
- Accuracy
- ±0.3°C
- Measuring range
- -40°C à 65°C
- Measurement frequency
- 10 à 12 secondes
- Measurement principle
- PN junction silicon diode
- Windchill
-
- Resolution
- 1
- Accuracy
- ±1
- Measurement frequency
- 10 à 12 secondes
- Measurement principle
- Calcul, formule de Osczevski (1995)
- Integrated Sensor Suite (ISS)
-
- Composition
- plastiques ABS et ASA résistants aux UV
- Measure
- Temperature ; Humidity ; Wind speed ; Wind direction ; Rainfall ; UV ; Solar radiation ; Windchill ; Wind gusts
- Power supply
- panneau solaire, accumulateur 10F, pile de secours
- Power supply autonomy
- 8 mois sans ensoleillement, plus de 2 ans en fonction de l'ensoleillement
- Operating temperature
- -40 à 65°C
- Current consumption
- 5 mA (en moyenne) de 4 à 6 VDC pour l'ISS seulement. 10 mA en moyenne entre la console et l'ISS
- Backup power supply
- pile Lithium 3V CR123 (non fournie)
- Outdoor humidity
-
- Units of measurement
- % HR
- Resolution
- 1%
- Accuracy
- ±2%
- Measuring range
- 1 à 100% RH
- Measurement frequency
- 50 secondes à 1 minute
- Measurement principle
- Condensateur à film
- Drift
- inférieur à 0.25% par an
- Solar radiation
-
- Units of measurement
- W/m²
- Resolution
- 1 W/m²
- Accuracy
- ± 5% de l'échelle totale
- Measuring range
- 0 à 1800 W/m2
- Drift
- jusqu'à ± 2% par an
- Rainfall
-
- Units of measurement
- mm ou pouces
- Resolution
- 0.2 mm ou 0.01in
- Accuracy
- Pour les intensités de pluie jusqu'à 100 mm/h : ±3% du total ou +0.25 mm au plus
- Measurement frequency
- 20 à 24 secondes
- Measurement principle
- Auget basculant
- Rain receiving surface
- 214 cm2
- Rainfall rate
-
- Units of measurement
- mm/h ou in/h
- Resolution
- 0.1 mm ou 0.01 in/h
- Accuracy
- ±5% pour les intensités inférieures à 250 mm/h
- Measuring range
- 0 à 762 mm/h
- Measurement frequency
- 20 à 24 secondes
- Evapotranspiration
-
- Units of measurement
- mm ou pouces
- Resolution
- 0.1 mm ou 0.01in
- Accuracy
- 0.25 mm ou ±5%
- Measuring range
- Journalier jusqu'à 832,2 mm, mensuel et annuel jusqu'à 1999.9 mm
- Measurement frequency
- 1 heure
- Measurement principle
- Equation de Penman modifiée, telle que mise en œuvre par CIMIS (California Irrigation Management Information System)
- Dew point
-
- Units of measurement
- °C ou °F
- Resolution
- 1
- Accuracy
- ±1.5°C
- Measuring range
- -76° à 54°C
- Measurement frequency
- 10 à 12 secondes
- Measurement principle
- L'équation de l'OMM à l'égard de la saturation de l'air humide sur l'eau
