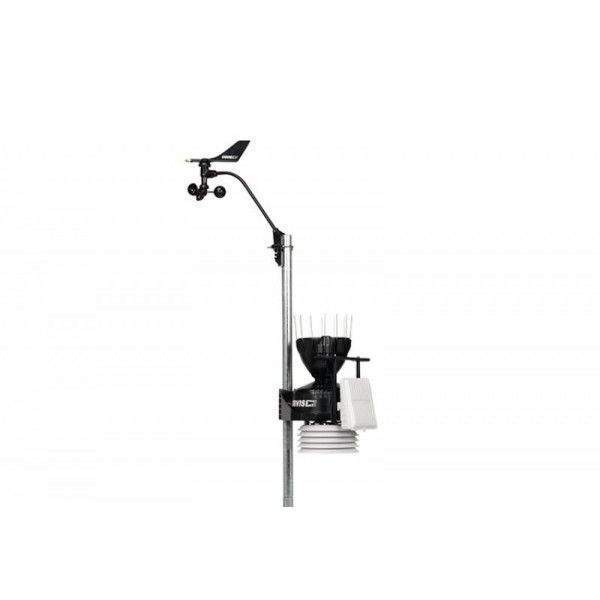

Cabled GroWeather Sensor Suite with Pyranometer

GroWeather sensor suite which corresponds to the classic wired sensor suite (ref. 6322C) but with the pyranometer in addition. This sensor suite is recommended for agriculture or viticulture for example.
The GroWeather Sensor Suite (ISS) is very robust and can be mounted on a mast (tube) or on a wooden pole. A dual sensor for measuring outdoor temperature and humidity is placed in a standardised radiation shelter. The aerodynamic rain gauge is equipped with a tilting bucket to measure precipitation and bird spikes. The anemometer - wind vane can be detached from the ISS to be installed on a roof for example thanks to its 12 meter cable. The pyranometer allows the measurement of the global solar radiation in W/m² but also the calculation of the evapotranspiration (ETP) thanks to the other sensors of the weather station.
The 6820C sensor suite is delivered with:
- An outdoor sensor suite (ISS).
- A pyranometer and its stand.
- A wind vane with 12 metres of cable.
- A mounting kit
- A 30m cable to connect the ISS to the console
- An instruction manual
- Miscellaneous
-
- Size
- 378 x 328 x 594 mm
- Weight
- 5.1 kg
- Warranty
- 2 ans
- Length
- câble de 30m fourni, max possible 300 m
- Wind
-
- Units of measurement
- mph, km/h, m/s, Nœud
- Resolution
- 1 mph, 1 km/h, 0.5 m/s, ou 1 Nœud
- Accuracy
- ±3 km/h
- Measuring range
- 3 à 322 km/h
- Measurement frequency
- 2.5 à 3 secondes
- Wiring
- 12m de longueur, max recommandé 165m
- Measurement principle
- Godets à vent, capteur à effet Hall
- Wind direction
-
- Resolution
- 16 points (22,5°) sur la rose des vents, 1° à affichage numérique
- Accuracy
- ±3°
- Measuring range
- 0 à 360°
- Measurement frequency
- 2.5 à 3 secondes
- Measurement principle
- Girouette avec potentiomètre
- Outside temperature
-
- Units of measurement
- °C ou °F
- Resolution
- 0.1
- Accuracy
- ±0.3°C
- Measuring range
- -40°C à 65°C
- Measurement frequency
- 10 à 12 secondes
- Measurement principle
- PN junction silicon diode
- Windchill
-
- Resolution
- 1
- Accuracy
- ±1
- Measurement frequency
- 10 à 12 secondes
- Measurement principle
- Calcul, formule de Osczevski (1995)
- Integrated Sensor Suite (ISS)
-
- Composition
- plastiques ABS et ASA résistants aux UV
- Measure
- Solar radiation ; Windchill ; Wind gusts ; Temperature ; Humidity ; Wind speed ; Wind direction ; Rainfall ; UV
- Operating temperature
- -40 à 65°C
- Current consumption
- 5 mA (en moyenne) de 4 à 6 VDC pour l'ISS seulement. 10 mA en moyenne entre la console et l'ISS
- Outdoor humidity
-
- Units of measurement
- % HR
- Resolution
- 1%
- Accuracy
- ±2%
- Measuring range
- 1 à 100% RH
- Measurement frequency
- 50 secondes à 1 minute
- Measurement principle
- Condensateur à film
- Drift
- inférieur à 0.25% par an
- Solar radiation
-
- Units of measurement
- W/m²
- Resolution
- 1 W/m²
- Accuracy
- ± 5% de l'échelle totale
- Measuring range
- 0 à 1800 W/m2
- Drift
- jusqu'à ± 2% par an
- Rainfall
-
- Units of measurement
- mm ou pouces
- Resolution
- 0.2 mm ou 0.01in
- Accuracy
- Pour les intensités de pluie jusqu'à 100 mm/h : ±3% du total ou +0.25 mm au plus
- Measurement frequency
- 20 à 24 secondes
- Measurement principle
- Auget basculant
- Rain receiving surface
- 214 cm2
- Rainfall rate
-
- Units of measurement
- mm/h ou in/h
- Resolution
- 0.1 mm ou 0.01 in/h
- Accuracy
- ±5% pour les intensités inférieures à 250 mm/h
- Measuring range
- 0 à 762 mm/h
- Measurement frequency
- 20 à 24 secondes
- Evapotranspiration
-
- Units of measurement
- mm ou pouces
- Resolution
- 0.1 mm ou 0.01in
- Accuracy
- 0.25 mm ou ±5%
- Measuring range
- Journalier jusqu'à 832,2 mm, mensuel et annuel jusqu'à 1999.9 mm
- Measurement frequency
- 1 heure
- Measurement principle
- Equation de Penman modifiée, telle que mise en œuvre par CIMIS (California Irrigation Management Information System)
- Dew point
-
- Units of measurement
- °C ou °F
- Resolution
- 1
- Accuracy
- ±1.5°C
- Measuring range
- -76° à 54°C
- Measurement frequency
- 10 à 12 secondes
- Measurement principle
- L'équation de l'OMM à l'égard de la saturation de l'air humide sur l'eau
