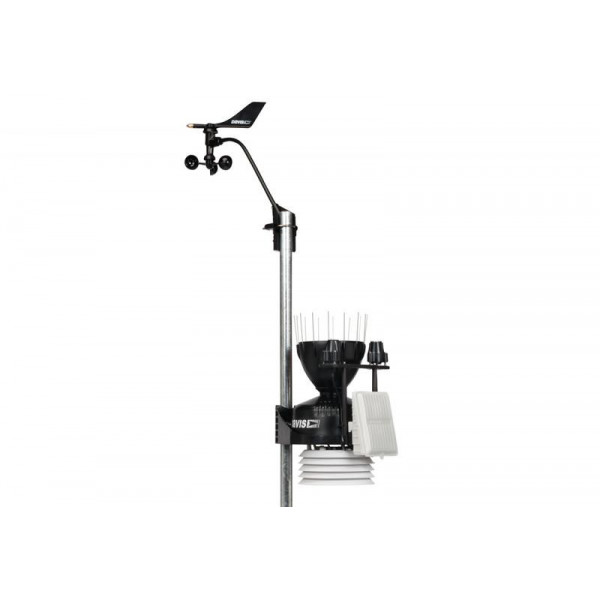

Sensor Suite for cabled Vantage Pro 2 Plus

€1,209.00 (tax incl.) (€1,007.50 VAT excl.)

Delivery in 1 to 5 days in Europa

Davis Instruments Vantage Pro 2 Plus Wired Weather Station Sensor Suite. Includes all outdoor sensors for the Vantage Pro 2 6162CEU Wired Weather Station. Wired version.

Reference

6327C

Available (3 Items)

Description
Downloads

Davis Instruments Vantage Pro 2 Plus Wired Weather Station Sensor Suite for the 6162CEU weather station and is compatible with Vantage Pro2 EU, UK, FR. The link between the outdoor sensors and the console is via a 30 m (98 ft) RJ11 cable.

The ISS is very robust and can be mounted on a mast (tube) or a wooden pole. A dual sensor for measuring outdoor temperature and humidity is placed in a standardised radiation shelter. The rain gauge is equipped with a 2-trough tipping bucket system for measuring rainfall and bird spikes. The wind vane anemometer can be detached from the ISS and installed on a roof, for example, thanks to its 12 metre cable.

The 6327C sensor suite is delivered with:

An outdoor sensor suite (ISS).
An anemometer - wind vane with 12 metres of cable.
A mounting kit.
A user's manual.
A 30 m cable to connect to a console

ATTENTION: You are only buying the sensor suite, the console is not sold with the reference 6827C.

Manual ISS VP2 (FR/ES/DE)

Download (2.17MB)

Manuel ISS VP2 (EN)

Download (3.08MB)

Data sheet

Miscellaneous

Size: 445 x 264 x 406 mm
Weight: 5.0 kg
Warranty: 2 ans
Radio frequency: 868.0 - 868.6 MHz FHSS, inférieur à 8mW
Wireless range: 300m à vue, 60 à 120m avec des obstacles

Wind

Units of measurement: mph, km/h, m/s, Nœud
Resolution: 1 mph, 1 km/h, 0.5 m/s, ou 1 Nœud
Accuracy: ±3 km/h
Measuring range: 3 à 290 km/h
Measurement frequency: 2.5 à 3 secondes
Wiring: 12m de longueur, max recommandé 165m
Measurement principle: Godets à vent, capteur à effet Hall

Wind direction

Resolution: 16 points (22,5°) sur la rose des vents, 1° à affichage numérique
Accuracy: ±3°
Measuring range: 0 à 360°
Measurement frequency: 2.5 à 3 secondes
Measurement principle: Girouette avec potentiomètre

UV Index

Resolution: 0.1
Accuracy: ± 5% de l'échelle totale
Measuring range: Indice 0 à 16
Measurement frequency: 50 sec à 1 min (5 minutes lorsqu'il fait sombre)
Drift: jusqu'à ± 2% par an

Outside temperature

Units of measurement: °C ou °F
Resolution: 0.1
Accuracy: ±0.3°C
Measuring range: -40°C à 65°C
Measurement frequency: 10 à 12 secondes
Measurement principle: PN junction silicon diode

Windchill

Resolution: 1
Accuracy: ±1
Measurement frequency: 10 à 12 secondes
Measurement principle: Calcul, formule de Osczevski (1995)

Integrated Sensor Suite (ISS)

Composition: plastiques ABS et ASA résistants aux UV
Measure: Temperature ; Humidity ; Wind speed ; Wind direction ; Rainfall ; UV ; Solar radiation ; Windchill ; Wind gusts
Operating temperature: -40 à 65°C
Current consumption: 5 mA (en moyenne) de 4 à 6 VDC pour l'ISS seulement. 10 mA en moyenne entre la console et l'ISS

UV radiation dose

Units of measurement: MEDs
Resolution: 0.1 MEDs à 19.9 MEDs, tous les 1 MED au dessus de 19.9 MEDS
Accuracy: ±5% pour le total journalier
Measurement frequency: 50 sec à 1 min
Drift: jusqu'à ± 2% par an

Outdoor humidity

Units of measurement: % HR
Resolution: 1%
Accuracy: ±2%
Measuring range: 1 à 100% RH
Measurement frequency: 50 secondes à 1 minute
Measurement principle: Condensateur à film
Drift: inférieur à 0.25% par an

Solar radiation

Units of measurement: W/m²
Resolution: 1 W/m²
Accuracy: ± 5% de l'échelle totale
Measuring range: 0 à 1800 W/m2
Drift: jusqu'à ± 2% par an

Rainfall

Units of measurement: mm ou pouces
Resolution: 0.2 mm ou 0.01in
Accuracy: Pour les intensités de pluie jusqu'à 100 mm/h : ±3% du total ou +0.25 mm au plus
Measurement frequency: 20 à 24 secondes
Measurement principle: Auget basculant
Rain receiving surface: 214 cm2

Rainfall rate

Units of measurement: mm/h ou in/h
Resolution: 0.1 mm ou 0.01 in/h
Accuracy: ±5% pour les intensités inférieures à 250 mm/h
Measuring range: 0 à 762 mm/h
Measurement frequency: 20 à 24 secondes

Evapotranspiration

Units of measurement: mm ou pouces
Resolution: 0.1 mm ou 0.01in
Accuracy: 0.25 mm ou ±5%
Measuring range: Journalier jusqu'à 832,2 mm, mensuel et annuel jusqu'à 1999.9 mm
Measurement frequency: 1 heure
Measurement principle: Equation de Penman modifiée, telle que mise en œuvre par CIMIS (California Irrigation Management Information System)

Dew point

Units of measurement: °C ou °F
Resolution: 1
Accuracy: ±1.5°C
Measuring range: -76° à 54°C
Measurement frequency: 10 à 12 secondes
Measurement principle: L'équation de l'OMM à l'égard de la saturation de l'air humide sur l'eau
